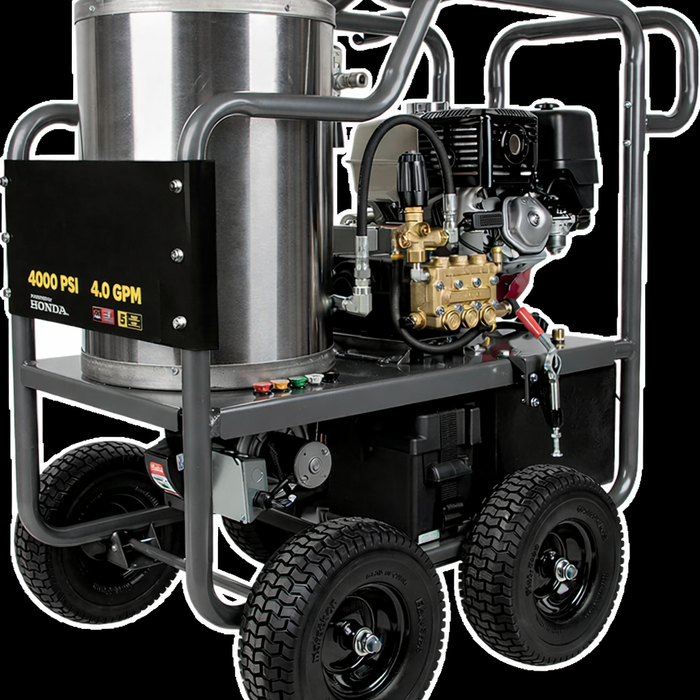

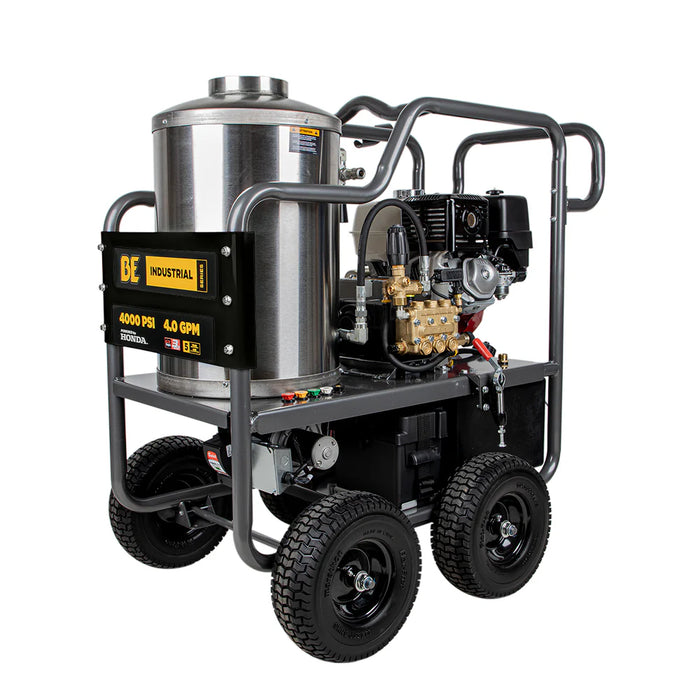

4 gpm 4000 psi Hot Portable Pressure Washer KEY START GX390 Honda TSS1511 Belt Driven
4 GPM 4000 PSI hot portable power washer General Pump TSS1511 GX390 KEY START engine
Standard Features:
Rugged powder coated steel roll cage frame; 13” Ultra Premium flat-free tires.
- 4-wheel dimensions: 45 L x 33 W x 52 H
- Super-efficient schedule 80 coil w/ one-piece molded insulation combustion chamber.
- Thermal relief valve
- External bypass Unloader
- 12” Oil drain hoses on pump and engine
- Stainless steel coil wrap.
- Air purge fitting for cold climates.
- 8-gallon poly diesel fuel tank w/ fuel filter.
- Commercial/industrial grade engines.
- 12 V DC Reliable Beckett burner
- Thermostat, rocker switch tach and hour meter
- 3’ Gun/Wand Assembly with 4 nozzles
- 50’ High pressure hose
- Belt driven pump
- Key Start with 55 AH AGM Deep Cycle Marine Battery
- Permanent mounting holes accessible on bottom of unit
- Can not be shipped inside the state of California
- 120 degree temp rise
- 330,000 BTU Output
- 580 lbs
If supplying with a garden hose from a property, use a 3/4" ID garden hose. If supplying water from a tank, use 1" non-collapsible suction hose with a 1" y-strainer (YS16H). We have a 4 GPM plumbing kit for pressure washers that includes everything needed to plumb this unit to a tank.
Install a high temperature Hudson float valve (Hudson-HT) using everything you need to install it with our Hudson assembly (Hudson-A). The Hudson assembly installs into the very top of the tank using a bulkhead and garden hose connection to prevent the tank from over-flowing.
Note: All units are completely factory assembled, tested, and delivered ready to operate.
SKU: PW.B4040BH
