8 gpm 3500 psi Skid Cold Pressure Washer Honda Engine TSF2021

8 gpm 3500 psi Skid Cold Pressure Washer Honda Engine TSF2021

by Pressure Washer Products
Save $550.00 Save $550.00
$4,100.00
$4,100.00 - $4,100.00
$4,100.00
$3,550.00
$3,550.00 - $3,550.00
$3,550.00
8 gpm 3500 psi Skid Cold Pressure Washer Honda Engine TSF2021
Pressure Washer Only

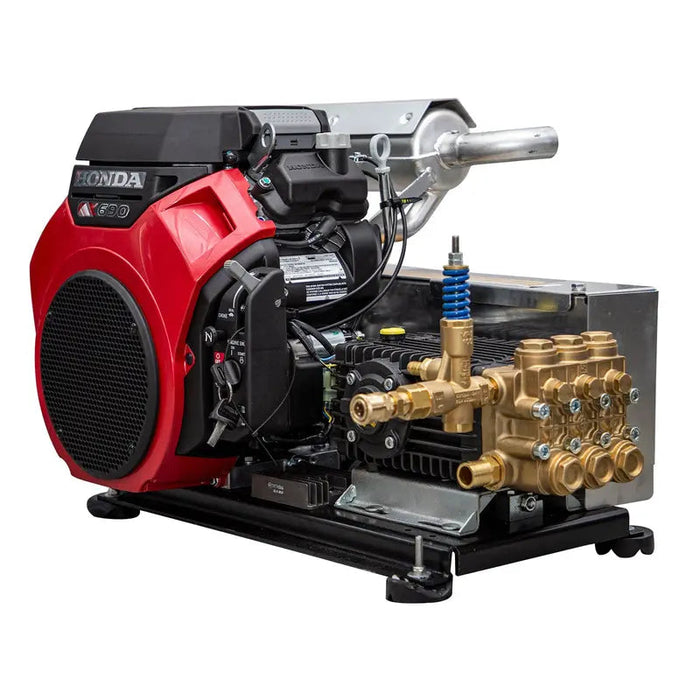

8 gpm 3500 psi Honda GX690 24 HP General Pump TSF2021 Belt drive, special powder coated steel frame and 1/2" blue spring high volume pressure trapped unloader



This unit is IN STOCK.



Standard features

  • Lifetime frame warranty on powder coated steel frame
  • 3/8" Coupler installed on the outlet of 1/2" unloader (reduced)
  • 1/2" Brass barb installed on the bypass outlet (Need bypass hose AGY08)
  • High flow 1/2" ported VRT100 unloader
  • 4 x 3VX Belts
  • Engine and pump oil drains
  • 29" L x 29" W x 20" H
  • 185 Lbs
  • Mounted on anti-vibration pads or hockey pucks
  • Starter side exhaust
  • Must add 2 or 4 AWG battery cables
  • Honda GX690 Key Start Engine
  • Oil prefilled in pump and engine
  • 30W Non-Detergent oil for pump
  • 10W30 oil for engine



We highly recommend adding:

The best high pressure 3/8" ball valve (6292.SM) to this order to allow you to turn off the high pressure flow of water to switch from the gun to a Whisper Wash Classic surface cleaner (4345W). You need 4 x 2.5 orifice 25 degree nozzles for a four tip bar (2812) or 2 x 4.5 orifice 25 degree nozzles for a two tip bar (1122).



This unit will need 8.5 or 9.0 nozzles and a 5 - 8 gpm 2.3 mm chemical injector assembly.



We carry everything you need to plumb this pressure washer in a kit which is part number, PL-8-TA for a horizontal leg tank or PL-8-TO for an IBC tote. You will need to add 10-15' of AGY08.  The kits do include the bypass hose.



Choose a 9.0 turbo nozzle for this pressure washer.





Do not adjust your unloader!

The unloader is set at a spike pressure of 200 psi above the operating pressure of the pump and meant to be left alone. If you need less pressure, change out the nozzles to a larger orifice and never smaller than what is called for using factory specifications using gpm and pressure. This unit requires a 8.5 orifice or larger. You can add a 6540-8 JROD kit to play with nozzle distances and pressures.





       Install a high temperature Hudson float valve (Hudson-HT) using everything you need to install it into your water tank with our Hudson Installation Kit (HB). The Hudson installation kit installs into the very top of the tank using a bulkhead and barb to prevent the tank from over-flowing.
