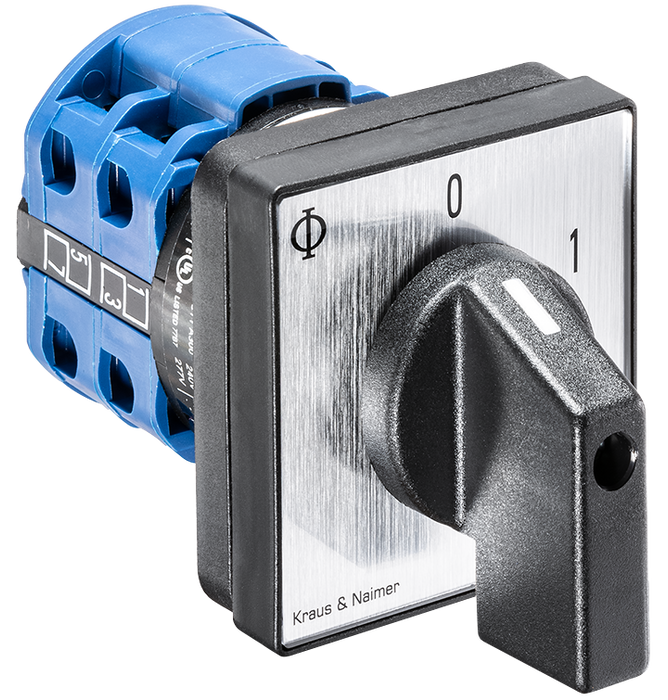

240V 30A 1.89" FP SINGLE HOLE MT. OFF-PUMP-BURNER K.N. CA20A312-
240v 30a 1.89" fp single hole mt. off-pump-burner k.n. ca20a312-600ft4
The cam (rotary) switch is used on pressure washers to control the operation of the electric pump motor and/or the burner motor.
- Double contact, quick connect
- 3 position: off-pump-burner
- Voltage: 220v 30 amp
- Face plate: 1-7/8"
- Mounting: single hole wiring
- Line 1: wire to terminal #2
- Pump: wire to terminal #1 and #5
- Burner: wire to terminal #3 and #7
- Line 2: wire to terminal #6
